AS32 CB/T425 Duplex Oil Strainers With 0.5MPa Pressure Range And Superior Performance

Cast Iron Flanged Duplex Oil Filter AS32 Cb/T425 For Fuel Transfer Pump Cast Iron Body Includes Stainless Steel Filter

Product Description For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

A dual oil filter, which is also referred to as a parallel switchable dual filter, is a type of equipment that utilizes a conversion valve core to combine two separate filters. As a result, maintenance and cleaning can be performed without having to stop the machine, thereby ensuring the continuous operation of other equipment.

The dual oil filter is particularly beneficial for non-stop production lines as it helps to maintain uninterrupted operation. With this type of fuel filter, you don't have to worry about halting operations for maintenance and cleaning, which can save valuable time and reduce downtime. Additionally, the dual filter system increases the durability of equipment by improving filtration efficiency and reducing the likelihood of premature equipment failure.

Overall, the implementation of a dual oil filter can have a significant impact on the productivity and efficiency of an organization. By cutting down on downtime and ensuring continuous operation, businesses can improve their bottom line and provide a more streamlined production process.

Features For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

It can be switched without stopping the machine.

• Product Name: Double Oil Strainer & Double Oil Filter & Duplex Oil Filter & Duplex Oil Strainers
• Pressure Range: 0.5MPa
• Body Material:Cast Iron
• Filter Material: Stainless Steel
• Temperature Range: ≤100℃
• Surface Treatment: Paint

Our Dual Crude Oil Filter, also known as CAST IRON DUPLEX STRAINERS, are perfect for filtering out unwanted particles from your fuel. With a pressure range of 0.5MPa, this filter can handle heavy oil and fuel with ease. Made with stainless steel, it can withstand high temperatures up to 100℃. The surface treatment of paint adds an extra layer of protection. Whether you need a Dual Fuel Filter, Dual Oil Filter, or Dual Heavy Oil Filter, our Double Oil Strainer has got you covered.

Technical Parameters For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

Flange size selection For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

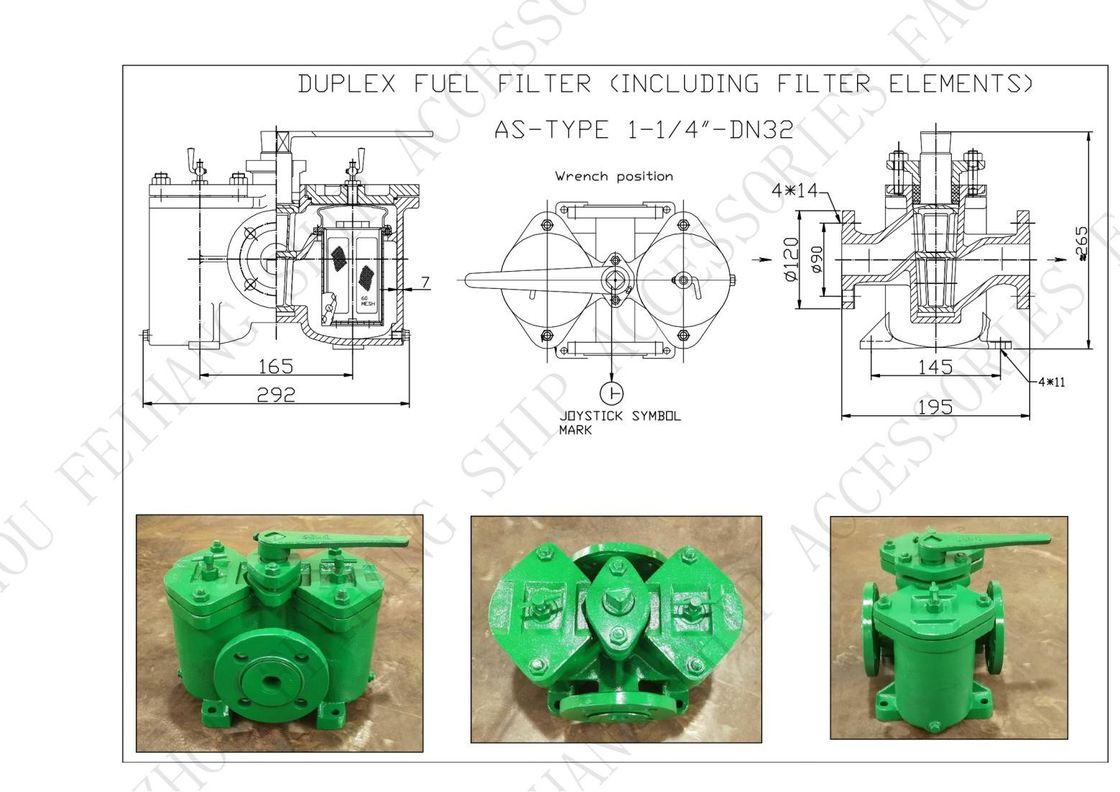

DUPLEX FUEL FILTER & DUPLEX OIL FILTER (INCLUDING FILTER ELEMENTS) & DUPLEX FUEL STRAINERS (INCLUDING FILTER ELEMENTS)  Technical parameter table For A32 DUPLEX OIL FILTE...

DETAIL:

MODEL - A32 - 0.25/0.16 CB/T425 - 94

FLANGE TO FLANGE (L) - 195mm

FLANGE DIAMETER - 115mm

FLANGE PCD - 83mm

NO. OF BOLT HOLES - 6

BOLTS SIZE - M14

DUPLEX FUEL FILTER & DUPLEX OIL FILTER (INCLUDING FILTER ELEMENTS) & DUPLEX FUEL STRAINERS (INCLUDING FILTER ELEMENTS)  Technical parameter table For AS32 DUPLEX OIL FILT...

DETAIL:

MODEL - AS32 - 0.25/0.16 CB/T425 - 94

FLANGE TO FLANGE (L) - 195mm

FLANGE DIAMETER - 120mm

FLANGE PCD - 90mm

NO. OF BOLT HOLES - 4

BOLTS SIZE - M12

DUPLEX FUEL FILTER & DUPLEX OIL FILTER (INCLUDING FILTER ELEMENTS) & DUPLEX FUEL STRAINERS (INCLUDING FILTER ELEMENTS) Technical parameter table For A16032 DUPLEX OIL FI...

DETAIL:

MODEL - -FH32 - 0.25/0.16 CB/T425 - 94

FLANGE TO FLANGE (L) - 195mm

FLANGE DIAMETER - 140mm

FLANGE PCD - 100mm

NO. OF BOLT HOLES - 4

BOLTS SIZE - M16

Applications For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

These dual fuel filters are suitable for a wide range of ships and industries, including power generation, oil and gas, chemical processing, and more. Whether you need to filter particles from hydraulic oil, lubricating oil, or other liquids, these dual oil filters are capable of handling it.

Low pressure coarse oil filter, dual low pressure coarse oil filter AS32 0.75/0.26 CB/T425-94

Dual oil filter, dual switchable coarse oil filter AS4032 0.4/0.22 CB/T425-94

Marine low-pressure crude oil filter, marine dual low-pressure crude oil filter AS32 0.25/0.16 CB/T425-94

Low pressure dual fuel filter, dual fuel filter AS32 0.18/0.13 CB/T425-94

AS32 straight through low-pressure coarse oil filter, straight through dual low-pressure coarse oil filter 0.16/0.09

Fuel transfer pump dual oil filter, dual switchable coarse oil filter AS32-0.75/0.26 CB/T425-94

AS32-0.25/0.16 CB/T425-94 Lubricating oil pump dual oil filter, dual coarse oil filter

Dual oil filter AS32-0.75/0.26 CB/T425-94 for outlet of oil purifier

Dual oil filter AS32-0.18/0.13 CB/T425-94 for fuel separator outlet

Diesel oil separator imported dual coarse oil filter AS32-0.4/0.22 CB/T425-1994

Dual oil filter at the outlet of the oil separator, dual coarse oil filter MODEL: A40-0.75/0.26 CB/T425-94

Dual oil filter at the outlet of the oil purifier, dual coarse oil filter MODEL: A40-0.75/0.26 CB/T425-94

Thanks to their high-quality construction and materials, these oil strainers are built to last. They come with all the necessary certifications, including factory certificates, test reports, and material reports, so you can be confident in their quality and reliability.

FEIHANG's Duplex Oil Strainers can be customized to meet your specific needs and requirements. The mesh size can be tailored to your application, and the connection type is flanged for easy installation. Plus, the surface treatment is painted, providing an additional layer of protection against corrosion and wear.

With a size range of 1-1/4"-dn32, these oil strainers can be used in a variety of equipment and machinery. And with a minimum order quantity of just 1 piece, they're perfect for both small-scale and large-scale operations.

FEIHANG's Duplex Oil Strainers are available for discussion personally, and are delivered within 3-5 days. Payment terms are 100% prepaid, and the supply ability is up to 100 pieces per day. Plus, they come with export packaging for added peace of mind.

Overall, if you need a reliable and effective way to filter out contaminants from your oil and other fluids, FEIHANG's AS-type and FH-type Duplex Oil Strainers are an excellent option. With their high-quality construction, customization options, and wide range of applications, these oil strainers are sure to meet your needs and exceed your expectations.

How To Order For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

FEIHANG offers product customization services for their Double Oil Strainer, also known as Cast Iron Duplex Strainers. The model numbers available for customization are AS-type and FH-type. The product is manufactured in Yangzhou, Jiangsu, China and comes with factory certification, a test report, and a material report. The minimum order quantity is 1 piece and pricing will be discussed personally. The product is packaged and delivered for export, with a delivery time of 3-5 days. Payment terms are 100% prepaid and the supply ability is 100 pieces per day.

The Double Oil Strainer is made of cast iron and has a painted surface treatment. It has a flanged connection type and the filter material is made of stainless steel. This dual fuel filter is designed to provide superior filtration for industrial applications. Contact us to discuss your product customization needs.

Product Name: DOUBLE OIL STRAINER

Support and Services For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

The Duplex Oil Strainer product provides technical support and services to ensure optimal performance and longevity. Our team of experts is available to assist with installation, maintenance, and troubleshooting. We also offer training sessions to educate customers on the proper use and care of our product. In addition, we provide regular maintenance and inspection services to ensure that the strainer is operating efficiently and effectively. Contact us for more information on our technical support and services.

Packing and Shipping For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

Packaging and Shipping

The dual oil filter is safely packaged in an export wooden box, designed to protect it during transportation. The box is clearly labeled with the product name and any relevant handling instructions. Then use a reliable transportation company to deliver it to the customer.

We are a qualified manufacturer (Duplex oil ftilers Double Oil Strainers) in China, and our products have been exported to customers around the world, such as Singapore, Dubai, Hamburg, United Arab Emirates, Netherlands, South Korea, Mexico, Thailand, Indonesia, Vietnam, Philippines, United Kingdom, etc..v

FAQ For Duplex Oil Filter AS32 Cb/T425 Duplex Oil Straienrs:

Q1: What is the brand name of the Duplex Oil Strainer?

A1: The brand name of this product is FEIHANG.

Q2: What are the available models for this product?

A2: The available models for the Duplex Oil Strainer are AS-type and FH-type.

Q3: Where is the place of origin of this product?

A3: The Duplex Oil Strainer is manufactured in Yangzhou, Jiangsu, China.

Q4: What are the certifications provided for this product?

A4: The Duplex Oil Strainer comes with a factory certificate, test report, and material report.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for the Duplex Oil Strainer is 1 piece.

Q6: What is the pricing for this product?

A6: The pricing for the Duplex Oil Strainer can be discussed personally.

Q7: How is the product packaged?

A7: The Duplex Oil Strainer is packaged in export packaging.

Q8: What is the delivery time for this product?

A8: The delivery time for the Duplex Oil Strainer is 3-5 days.

Q9: What are the payment terms for this product?

A9: The payment terms for the Duplex Oil Strainer is 100% prepaid.

Q10: What is the supply ability for this product?

A10: The supply ability for the Duplex Oil Strainer is 100 pieces per day.
